Fiamma F65 L Polar Right Lead Bar End Cap White. 98666-02-
$84.00
Sold Out - Backorder Available
Fiamma F65 L Polar Right Lead Bar End Cap White. 98666-02-
The Fiamma F65 is a roof-mounted awning commonly used on vans, campervans, and motorhomes. It provides shade and shelter, and is popular for its sleek, aerodynamic housing that fits well on curved rooflines. Like other Fiamma awnings, its built for easy operation and durability.

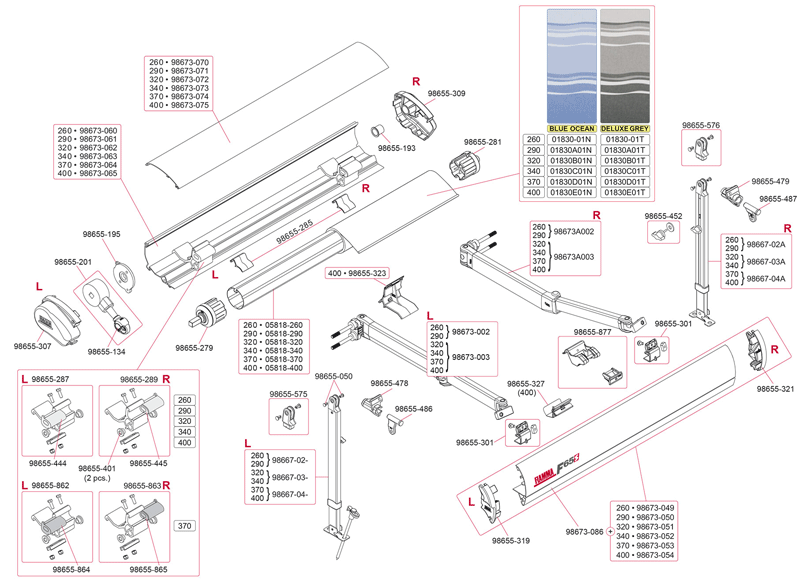

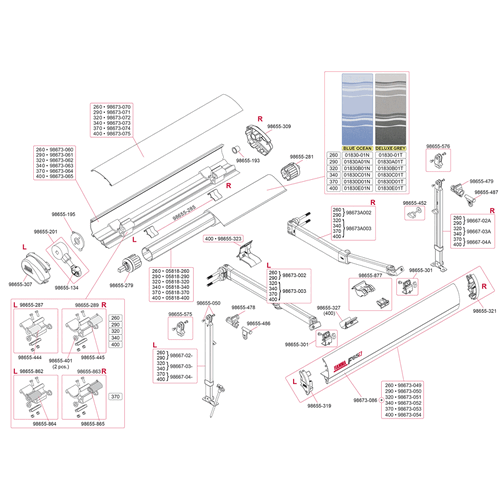

Main Parts of the Fiamma F65 Awning:
| Part | Description |
| 1. Outer Case (Housing) | Aluminum casing mounted on the roof; protects the awning fabric when retracted. Available in white, titanium, or black. |
| 2. Awning Fabric (Canopy) | Durable, UV-resistant vinyl or acrylic fabric that rolls out to provide shade. |
| 3. Roller Tube | The fabric rolls around this internal tube. It's spring-loaded and connected to the crank system. |
| 4. End Caps | Plastic or metal end pieces on each side of the housing, enclosing the mechanical components. |
| 5. Gearbox | Mechanism that drives the roller tube when operated manually (via crank handle). |
| 6. Crank Handle | Manual control used to extend or retract the awning. Often telescopic. |
| 7. Front Bar | The lead edge of the awning that pulls the fabric outward. It's also where legs are attached. |
| 8. Support Legs | Adjustable legs that extend down to the ground or attach to the vehicle side for stability. |
| 9. Leg Locking Mechanism | Keeps the legs locked into the desired height or position. |
| 10. Arm Assemblies (Tension Arms) | Hinged arms inside the housing that extend and support the awning. Often spring-loaded for fabric tension. |
| 11. Mounting Brackets | Special brackets adapted to fit specific vehicles (e.g., Mercedes Sprinter, Fiat Ducato, Ford Transit). |
| 12. Rain Guard (Optional) | Helps prevent water ingress between the awning and the vehicle wall or roof. |
| 13. Motor Kit (Optional) | An electric motor upgrade that automates extension/retraction. Often includes remote control. |
Common Replacement Parts:
Crank handles (standard or short)
End caps (left/right, various colors)
Gearbox kits
Support leg knobs and feet
Front bar inserts and seals
Arm spring kits
Replacement fabric
Roller tube bearings
| SKU | 200-06176 |
| Brand | CTCRV |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.100m |
| Shipping Length | 0.200m |
